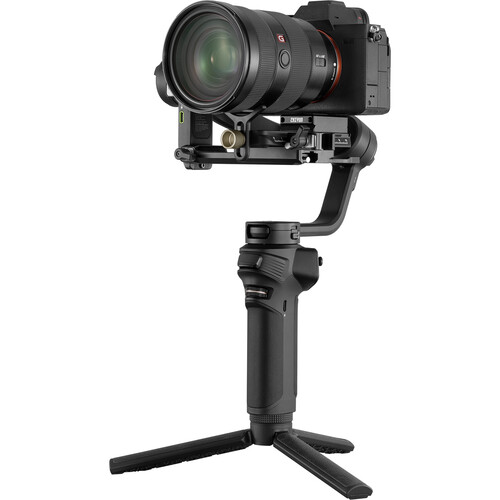

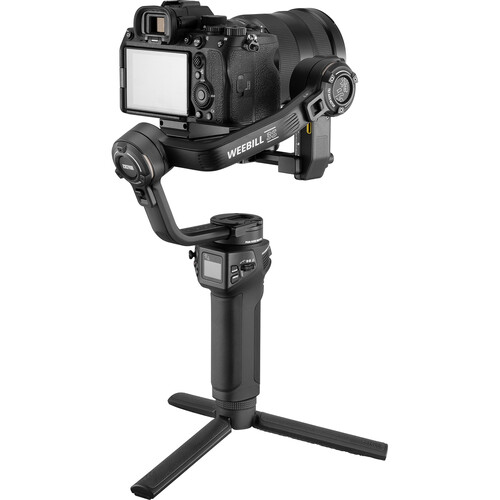

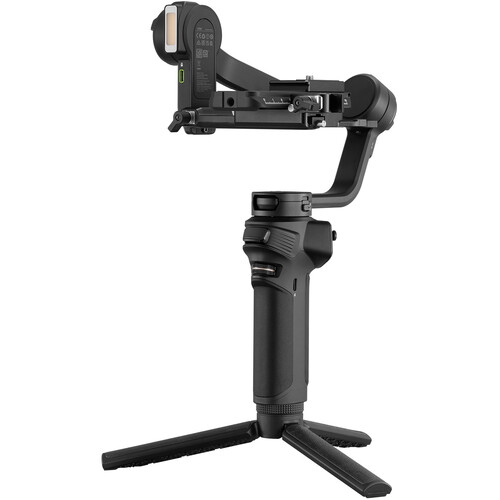

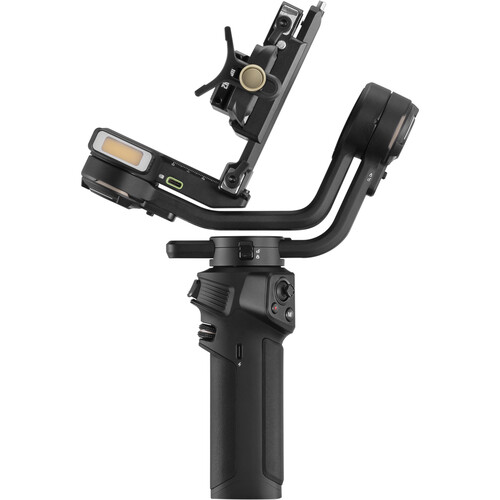

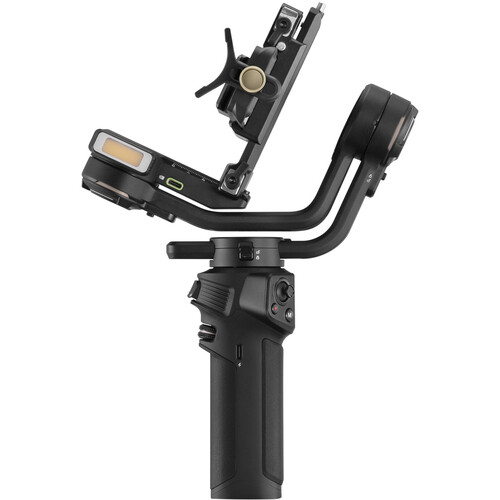

Zhiyun WEEBILL-3 S Handheld Gimbal Stabilizer with Built-In Fill Light

Certainly! Here’s a comprehensive overview of the Zhiyun WEEBILL-3 S Handheld Gimbal Stabilizer with Built-In Fill Light, detailing its design, features, technical specifications, and included accessories.

Design and Build

The Zhiyun WEEBILL-3 S introduces an optimized 2.5 Sling Structure, enhancing ergonomics for comfortable handling during extended shooting sessions. This design allows for left and right tilt adjustments and center-of-gravity modifications to the gimbal handle, facilitating improved low-angle shots. The gimbal’s compact form factor is complemented by a single slanted handgrip, providing a natural and balanced grip. Additionally, the 1/4″-20 thread at the bottom supports the included tripod accessory, offering versatile mounting options.

Gimbal Performance

Equipped with an optimized 10th-generation stabilization algorithm, the WEEBILL-3 S ensures smooth and reliable performance. The gimbal offers control over three axes:

• Yaw (Pan): 360° unlimited rotation
• Pitch (Tilt): Controllable range of 250° (-90° to 160°); mechanical range of 310° (-130° to 180°)
• Roll: Controllable range of 65° (-30° to 35°); mechanical range of 340° (-280° to 60°)

This extensive range of motion allows for dynamic and creative shooting angles.

Integrated Fill Light

A standout feature of the WEEBILL-3 S is its built-in fill light, which offers:

• Brightness: Peak illumination of 1000 lux
• Color Temperature: Adjustable between 2600K to 5500K
• Color Rendering Index (CRI): 90, ensuring natural and accurate color reproduction

This integrated lighting solution enhances low-light shooting capabilities without the need for external accessories.

Camera Compatibility and Control

The WEEBILL-3 S supports wireless Bluetooth 5.0 technology, enabling remote control of compatible cameras’ shutters directly from the gimbal. For models that require a wired connection, the gimbal includes control cables for Canon, Sony, and Panasonic cameras. The quick release plate features an intuitive landscape/portrait switch, allowing seamless transitions between horizontal and vertical shooting orientations.

User Interface and Controls

The gimbal is equipped with a 0.96″ fixed touchscreen OLED display, providing clear and accessible information on settings and modes. Users can toggle between different shooting modes using the flight joystick, customize the trigger button for quick access to preferred functions, and adjust specific parameters with the control wheel. These controls facilitate efficient operation and adaptability in various shooting scenarios.

Battery Life and Charging

Powered by two built-in 2600mAh 18650 lithium-ion batteries, the WEEBILL-3 S offers up to 11.5 hours of continuous operation. The gimbal supports PD fast charging via a USB-C port, achieving a full recharge in approximately two hours. Additionally, it can provide real-time charging to connected cameras at 5V/1A, ensuring extended shooting sessions without power interruptions.

Connectivity and App Integration

Beyond Bluetooth capabilities, the gimbal features 2.4 GHz Wi-Fi for seamless connection with the ZY Play app, compatible with both Android and iOS devices. This integration allows for remote control, parameter adjustments, and access to advanced shooting modes, enhancing the overall user experience.

Dimensions and Weight

• Folded Dimensions: 12 x 8.3 x 2.9 inches (305 x 210 x 72.5 mm)
• Unfolded Dimensions (without Tripod): 12.1 x 7.1 x 6.36 inches (306.4 x 181.4 x 161.63 mm)
• Weight: 2.4 lb (1.1 kg)

The compact and lightweight design ensures portability and ease of use during various shooting scenarios.

Included Accessories

The WEEBILL-3 S comes with a comprehensive set of accessories to enhance its functionality:

• C120 Tripod: Provides stable support for static shots and doubles as an extended grip.
• Quick Release Plates (2): Facilitate rapid mounting and dismounting of the camera.
• Lens Support: Offers additional stability for longer lenses.
• Camera Backing Base: Ensures secure attachment of the camera to the gimbal.
• USB-A to USB-C Charging Cable: For charging the gimbal.
• Control Cables: Includes specific cables for Sony, Canon, and Panasonic cameras, ensuring broad compatibility.
